Compatible Lemo K Series Push-Pull Connector Waterproof IP68 Solder Connector
Description:
-
1.Quick push pull self-latching system
-
2.Solder , crimp or print contacts
-
3.Straight or elbow 90.
-
4.Multiple keying options to avoide mismating
-
5.Full EMC shielding
-
6.Multi-pole 2 ~ 32 contacts
-
7.High-density installation to save space
-
8.Mating cycles: >5000 times
-
9.Humidity: at 60 °C, max. up to 95%
-
10.Temperature range: -45 ° ~ + 125 °
-
11.Vibration: 10-20,000HZ, 15g
-
12.Mechanical shock: 100g.6ms
-
13.Salt fog corrosion:>48h
-
14.Protection class: IP67
Technical data of Lemo 0K Connectors:
| Shell Style/Model | FGG male plug and EGG female Receptacle |
| Keying | 1 key (alpha=0, plug: male contacts, receptacle: female contacts) |
| Housing Material | Brass (black chrome) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces |
| Rated Current | 7A |
| Contact Dia | 0.7 mm (0.028in) |
| R (max) | 6.1 mOhm |
| Contact Type | Solder |
| Vtest | 700-1000V |
| Endurance (Shell) | 5000 |

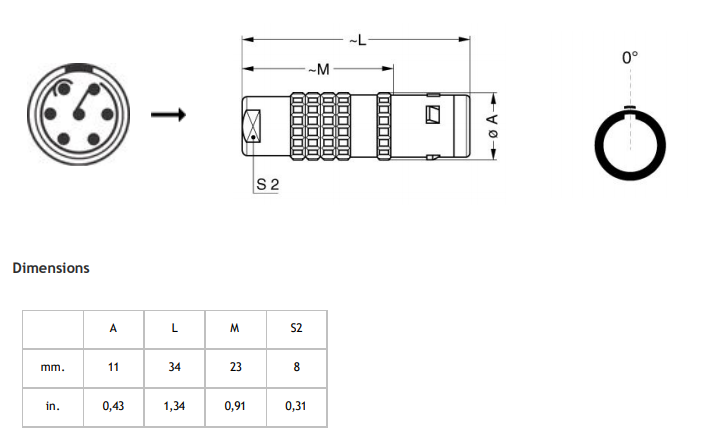

Drawing & Size:
Application:
FAQ
1. Are your company a professional manufacturer?
Re: Yes, we specialized in producing circular push pull connectors and cable assembly since 2015.
We have the series connectors and cable assembly like Lemo-B, Lemo-K,Lemo-S, Lemo-F,Lemo-E,Hirose-HR10A, Lemo-P, M4, M12,M16, BNC, B680,B423 , 38999, 26482.
2. What is the MOQ?
Re: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample :
Re: Available. Any needs, please contact us.
4. What about the delivery time?
Re: sample for 1-2 working days, mass production for 5-10 working days.
5.What is your payment terms?
Re: We accept most of the payment methods, but mainly accept TT,LC, Paypal.
6. Does your product have any warranty?
Re: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
