LCD Display Waterproof Circular Connector Parts NLL75-8651-113 CE/ROHS Approval

Brand Name : OEM

Model Number : NLL75-8651-113

Certification : CE,ROHS

Place of Origin : China

MOQ : 1000pcs

Price : 20USD

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 2000 sets per month

Delivery Time : 3-10 working days

Packaging Details : pp bag

Model No. : NLL75-8651-113

Gender : Male and Female

Application : RF, Lighting

IP Grade : IP68

Type : Circular

Materials : Plastic

Contact Now

Compents Max4180 original electronic IC

Features:

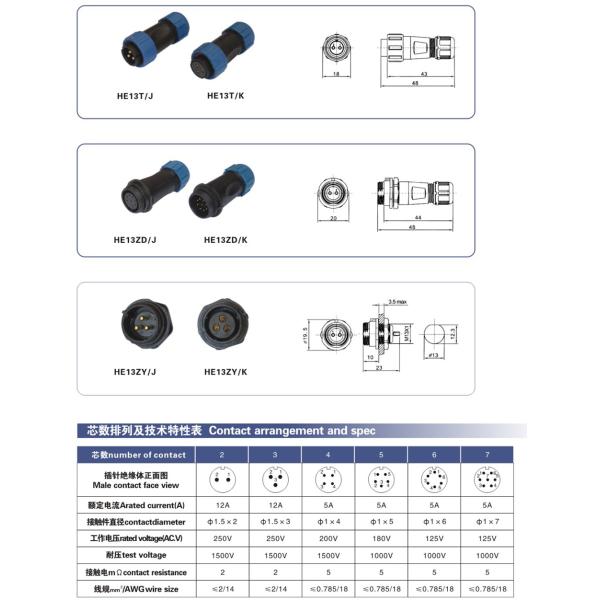

SP13 is the smallest plastic shell IP 68 waterproof connector, it is one of our most popular outdoor watertight connector.

1. Shell diameter(the panel hole cutout diameter):13mm
2. Number of contacts:2-9 gold plated contacts
3. Rated current and V:13A~3A 250V~125V
4. Cable outer diameter acceptance:4~8mm

Application For SP 13 (Threaded):

This miniature IP 68 waterproof connector is ideal for indoor/outdoor and under water hush conditions, such as outdoor led lighting, LED panel screens, outdoor security cameras, solar energy inverter, medical device, communications, marine equipment ,control systems, measuring equipment and testing equipment, for data and power.

Specification:

Coupling Type: Threaded Coupling
IP Rating: IP68
Material: Plastic
Outshell Material: PA66 Nylon, fire resistance: V-0
Insert Material: PPS,Max temperature 260 degrees,Fire resistance:V-0
Contact Material: Brass with gold plating
Termination: Solder
Mating Cycle:＞500 times
Temperature range:－25 degrees~+85 degrees
Insulation Resistance MΩ:2000
